This document presents the syntax and semantics of LURQL along with examples of how to use it. It assumes familiarity with UML.

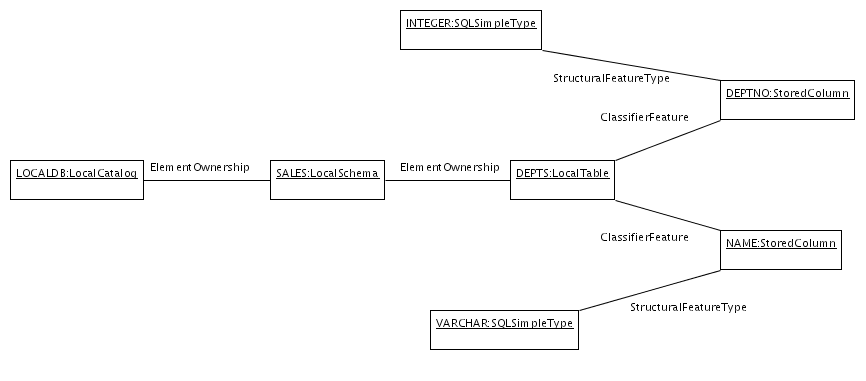

As sample metadata to be retrieved (instantiating the above metamodel), we use the standard Farrago example schema. Here's a UML object diagram for the partial definition of one of the tables (including its containers, columns, and their datatypes):
As you can see, LURQL uses a SQL-ish
select * from class Table where name = 'DEPTS' then ( follow association ClassifierFeature ); EXECUTION RESULT: LocalTable: DEPTS StoredColumn: DEPTNO StoredColumn: NAME
select/from/wherestructure, but the resemblance is only superficial. LURQL queries have a mapping to the directed graph structure of the metamodel of interest. In this case, we are starting from the extent of all tables, filtering down to just those tables whose name matches the string literal 'DEPTS', and then following the association ClassifierFeature to pick up the corresponding columns. The result set is a collection of JMI objects (one table and two columns); we only display the object types and names in this document, but the actual return value is a reference to the live object in the repository (from which all of its attributes and links are accessible). Note that the actual type returned for DEPTS (LocalTable) is a subtype of the requested CWM type (Table); LURQL automatically includes all subtypes in its search.
Unlike SQL, the
* in the
select clause does
not project attributes; instead, it projects entire nodes of the query
graph. For example, if we only wanted to retrieve the columns:
select c from class Table as t where name='DEPTS' then ( follow association ClassifierFeature as c ); EXECUTION RESULT: StoredColumn: DEPTNO StoredColumn: NAME
asclause can be used to apply a label to each
followclause. In this case the label "t" is unused and is only specified as a syntax example. For follow clauses, the label is applied to the set of classes reached via the association (or associations) traversed (StoredColumn for c).
Follow clauses can be chained to arbitrary depth. For example, to retrieve the schema and table containing column EMPNO:
Wait, where did those extra objects come from? It turns out that there are four different objects in schema SALES with columns named EMPNO: two tables (EMPS and TEMPS) and two views (EMPSVIEW and TEMPSVIEW). LURQL followed all of these paths from the root column object EMPNO, and then merged all of them at the single parent schema (duplicates are always removed from the final result set).
select s, t from class Column where name='EMPNO' then ( follow association ClassifierFeature as t then ( follow association ElementOwnership backward as s ) ); EXECUTION RESULT: LocalSchema: SALES LocalTable: EMPS LocalTable: TEMPS View: EMPSVIEW View: TEMPSVIEW
Note that the query above specified the
qualifier on the traversal of association ElementOwnership, which is
what takes us from table to containing schema. The reason is that the
ElementOwnership association also links tables to other objects such
as constraints and dependencies. LURQL imposes direction on the
underlying metamodel as follows:
Direction is not the only qualifier available for filtering association traversals. The others are covered in some of the later examples as well as the formal syntax.
select s, t from class Column where name='EMPNO' then ( follow association ClassifierFeature as t then ( follow association ElementOwnership as s ) ); EXECUTION RESULT: Dependency: EMPS$DEP Dependency: EMPSVIEW$DEP Dependency: TEMPS$DEP Dependency: TEMPSVIEW$DEP LocalSchema: SALES LocalTable: EMPS LocalTable: TEMPS PrimaryKeyConstraint: SYS$PRIMARY_KEY PrimaryKeyConstraint: SYS$PRIMARY_KEY UniqueKeyConstraint: SYS$UNIQUE_KEY$EMPID View: EMPSVIEW View: TEMPSVIEW
followclause. It is also possible to explicitly specify more than one
followbranching out from the same origin along different associations. For example, suppose we'd like to find the datatype and containing tables of a column:
select t, d from class Column where name='CITY' then ( follow destination class Table as t union follow destination class SQLDataType as d ); EXECUTION RESULT: LocalTable: EMPS LocalTable: TEMPS SQLSimpleType: VARCHAR
unionis used because the final results are based on the two paths combined (with duplicates removed as always). Intersect and other set operations are not currently supported. The
followqualifier used here is based on the
class(Table or SQLDataType) reached rather than the association. The
destinationqualifier means filter based on the class reached rather than the starting class (the
originqualifier provides this alternative).
The example above shows diverging paths; it is also possible for paths to converge and then carry on together. Suppose we'd like to query the union of the columns of view EMPSVIEW and table DEPTS in schema SALES:
select c from class Schema where name='SALES' then ( follow destination class Table where name='DEPTS' union follow destination class View where name='EMPSVIEW' ) gather then ( follow destination class Column as c ); EXECUTION RESULT: StoredColumn: DEPTNO StoredColumn: NAME ViewColumn: EMPNO ViewColumn: NAME
gatherclause combines the leaves of the unioned paths and then applies the last

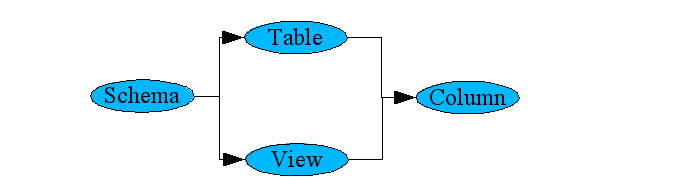

thenclause to that combination. Schematically:
In some cases, a query may need to contain excursions; the
gather with parent variation can be used for this
purpose. For example, suppose we want to query the columns of a view
together with all columns of directly underlying tables:
select c, t from class View where name='JOINVIEW' then ( follow association ElementOwnership destination class Dependency then ( follow destination end supplier destination class Table as t ) ) gather with parent then ( follow association ClassifierFeature as c ); EXECUTION RESULT: LocalTable: DEPTS LocalTable: EMPS StoredColumn: AGE StoredColumn: CITY StoredColumn: DEPTNO StoredColumn: DEPTNO StoredColumn: EMPID StoredColumn: EMPNO StoredColumn: GENDER StoredColumn: MANAGER StoredColumn: NAME StoredColumn: NAME StoredColumn: PUBLIC_KEY StoredColumn: SLACKER ViewColumn: DNAME ViewColumn: ENAME
followchain defines the view dependency traversal (and demonstrates association filtering via end names). It is an "excursion" in the sense that regardless of what it finds, we also want to include the original view (the "parent") as a source for the final

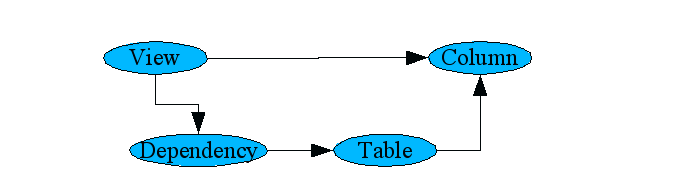

gather with parent. Here's the corresponding query graph:
The query did not mention any particular association or class other than Table; the structure was discovered automatically by query execution.
select * from class Table where name='TEMPS' then ( recursively ( follow composite backward ) ); EXECUTION RESULT: LocalCatalog: LOCALDB LocalSchema: SALES LocalTable: TEMPS
Recursion may contain follow chains (or diverging chains as long as they all eventually converge back to a single endpoint) and may be followed by more non-recursive query processing. Here's the previous view dependency example, this time capable of handling arbitrary depth (the results are not shown since the example views only have one level):

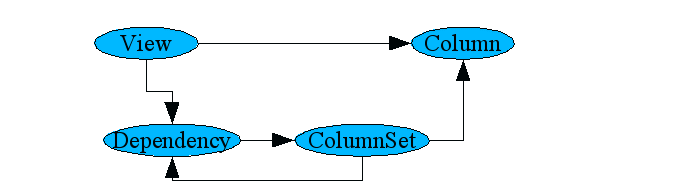

Note that the dependency destination has been changed from Table to ColumnSet (which includes the views we want to recursively expand). Such a recursive query can be diagrammed as a cyclic graph:
select c, t from class View where name='JOINVIEW' then ( recursively ( follow association ElementOwnership destination class Dependency then ( follow destination end supplier destination class ColumnSet as t ) ) ) gather with parent then ( follow association ClassifierFeature as c );
existsclause for filtering based on the existence of related objects.
Suppose we'd like to find all schemas which contain tables named 'EMPS':
By default, exists tests whether results are found for any node in the subquery (which can contain any kind of LURQL construct, including union and recursion). For more selective existence tests, it is possible to make the decision based on a select list. Suppose we'd like to find tables with columns of type BOOLEAN:
select s from class Schema as s where exists ( follow association ElementOwnership destination class Table where name='EMPS' ); EXECUTION RESULT: LocalSchema: SALES
If multiple variables are specified in the select list, then the existence test passes if any of them return at least one result. (Union rather than intersection.)
select t from class Table as t where exists d in ( follow association ClassifierFeature then ( follow destination class SQLDataType as d where name='BOOLEAN' ) ); EXECUTION RESULT: LocalTable: EMPS LocalTable: TEMPS
Any query text in between square brackets is not parsed by LURQL; it is instead sent to the configured SQL connection for execution. The SQL query should return a result set with exactly one column.
select dt from class Column where mofId in [select "mofId" from sys_cwm."Relational"."Column" where "name" like '%NO'] then ( follow destination class SQLDataType as dt ); EXECUTION RESULT: SQLSimpleType: INTEGER
In this case, the SQL query is against the catalog views derived from the same metadata being queried by LURQL. The "mofId" column is a special internal column representing the JMI object ID.
<lurql-query> ::= select <select-list> from <root> select-list ::= '*' | <id> [, <id> ... ] <root> ::= <simple-root> | <compound-root> <simple-root> ::= class <id> [ as <id> ] [ <where-clause> ] [ then <path-spec> ] <compound-root> ::= '(' <root> [ union <root> ... ] ')' [ gather then <path-spec> ] <where-clause> ::= where <filter> [ and <filter> ... ] <filter> ::= [ NOT ] <leaf-filter> <leaf-filter> ::= <id> '=' <value> | <id> matches <regular-expression-value> | <id> in '(' <value> [, <value> ... ] ')' | <id> in '[' <sql-query-text> ']' | <id> in <dynamic-param> | exists [ <select-list> in ] <path-spec> <value> ::= <literal> | <dynamic-param> <regular-expression-value> ::= <value> <dynamic-param> ::= '?' <id> <path-spec> ::= <path-spec-without-gather> [ gather [ with parent ] then <path-spec> ] <path-spec-without-gather> ::= '(' <path-branch> [ union <path-branch> ... ] ')' <path-branch> ::= <follow> | <recursion> <follow> ::= follow [ <association-filter> ... ] [ as <id> ] [ <where-clause> ] [ then <path-spec> ] <association-filter> ::= ( origin | destination ) ( end | class ) <id> | composite | noncomposite | association <id> | forward | backward <recursion> ::= recursively ( <path-spec-without-gather> | '(' <path-spec> ')' ) [ then <path-spec> ] <id> ::= <double-quoted-id> | <unquoted-id> <literal> ::= <single-quoted-string> | null
In 2005, the code was contributed under GPL licensing to The Eigenbase Project via LucidEra, a startup which has acquired the rights to the Broadbase code. Besides rechristening as LURQL, major changes from BERQL include:
